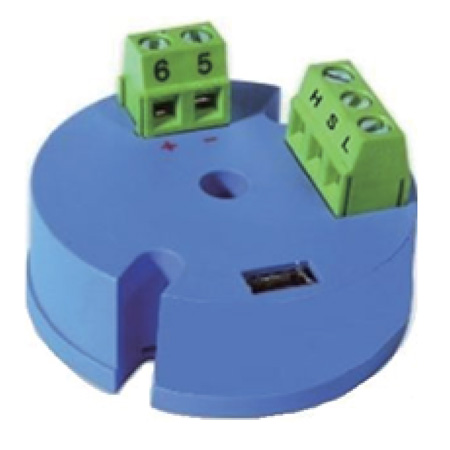

Potentiometer Transmitter

Specifications:
1.Input signal : 3 wire 200~60K ohms potentiometer.
2.Measuring accuracy : ±0.1%
3.A/D resolution : 16 bits
4.Input sampling rate : <200mS.
5.Output signal : Analogue 4 to 20mA, 20 to 4mA.
6.Output resolution : 0.6uA (15 bits)
7.Output response time : <200mS.
8.Load : Max. (VPower supply - 10 V) / 0.020
9.Power supply : 10 to 36 V, internal protection against polarity inversion.
10.Common mode rejection ratio : >80dB.
11.Galvanic isolation : 3.75 KVrms. between input and output
12.Input current required ≤3.8mA
13.Current limit ≤23mA
14.Operating temperature : 0to 55°C , Humidity : 0 to 90% RH

The user linearization feature allows the volume of a tank’s contents to be calculated from the height of the material in that container. Linearization points can be defined by user in the measurement range Configurable without Power Connected Vrms isolation between input and output 2-wire loop-power technology, 4 to 20 mA analogue output. Fault signal on sensor break pre settable. Accept 200 ~ 60K ohms 3 wire Potentiometer input.

Feature:
1. Level switch control
2. Analog output
3. Easy to calibrate
4. Head mounting
5. Compact, space saving
