Magnetic Float Level Switch

Specifications:
1. Switching Volts: 250 VAC
2. Switching Current: 0.7~2A
3. Contact : NO / NC
4. Max. Pressure:30 kg/cm² SUS / 5 kg/cm² PVC, PVDF, PP
5. Max. Length : 5 M
6. Temperature Range: 120°C SUS, PVDF / 80 °C PP, PVC
7.. Body Material: SUS304 / SUS316
8. Connection : Flange / Thread

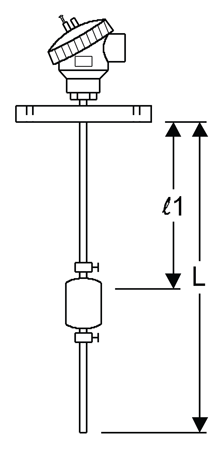

A magnetic float moves up and down on probe immersed in a liquid. The float energizes the hermitically sealed sensors, which change from NO to NC or otherwise as the float - passes them.

Magnetic Float Level Switch is flexible to produce 1-6 float points as per demand, so it has cost advantage comparing with other types of level switch. Multi-point float switch is widely used in level control and alarm of all kinds of industry such as Oil, chemical, water treatment, water supply, drainage, dyeing, machinery etc.

High-temperature liquids, heat medium boiler, cooling water tank.  Only need one float to control ON, OFF. Plastic materials include PP. It can be used for acid-base situation; material of SUS304/316 is suitable for high temperature and high pressure tanks.
