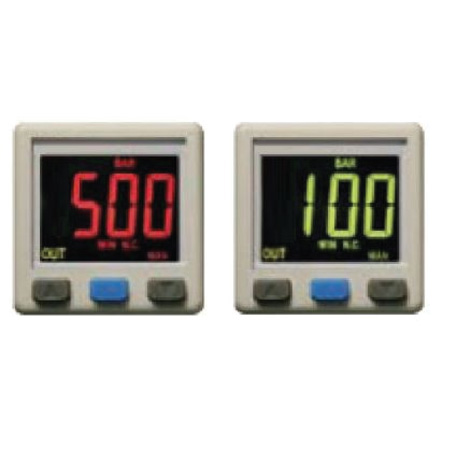

Digital Pressure Switch

Compact switches are available and may be incorporated into our range of vacuum ejectors and may be supplied with a LCD readout, allowing for precise and simple set-up.

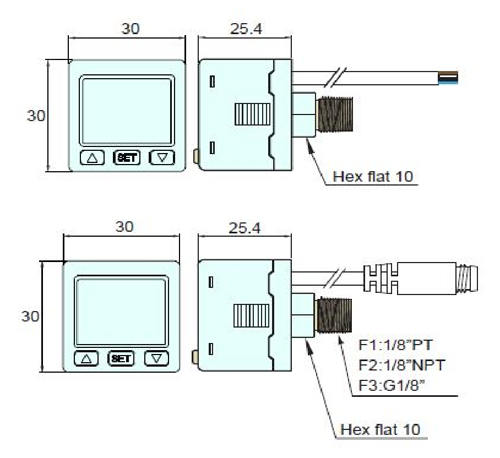

Designed for air, non-corrosive gas and non-flammable gas applications, these small (1.2" by 1.2" by 1.7" deep) digital pressure switches/ pressure transmitters have a 3-color LCD display and provide digital pressure control via two digital outputs and one analog output.

Applications:
1.Process control
2.Hydraulics & Pneumatic
3.Compressor Control
4.Chillers
5.Refrigeration Equipment

Digital pressure switch / transmitters are designed for air, no-corrosive gas and non-flammable gas applications. Fitted with a two-meter cable, the precision digital devices feature a three-color LCD display and provide two digital outputs and one analog output. Equipped with a lockable keypad, three operation modes and six pressure unit conversions, these switch/transmitters have two vacuums to pressure ranges, selectable response times to eliminate chattering, and a fast zero reset.
