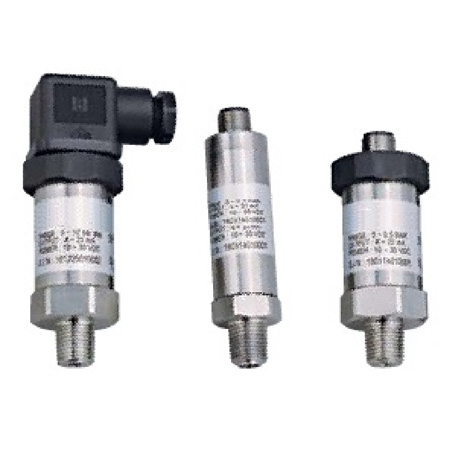

Pressure Transmitter

Measuring pressure range...absolute: 0~20 BAR，relative: 0~20 BAR
Pressure over load range
Pressure range 0.5 1 2 5 10 20
Overload range 2.5 3 4 7 15 30
Output : 4~20mA ; 2-wire
Linear accuracy : ±0.3% of F.S.
Load resistance ≤ (working voltage-10V) / 0.02A Ω
Response time  ≤ 5 ms
Media measured : gas, liquid
Media temperature : -20°C~80°C
Working temperature : -20°C~80°C
Working humidity : 100%
Storage temperature : -20°C~85°C
Zero-point tolerance : ±0.2% fs /10K
Measuring range tolerance : ±0.2% fs /10K
Power supply : 10~30VDC

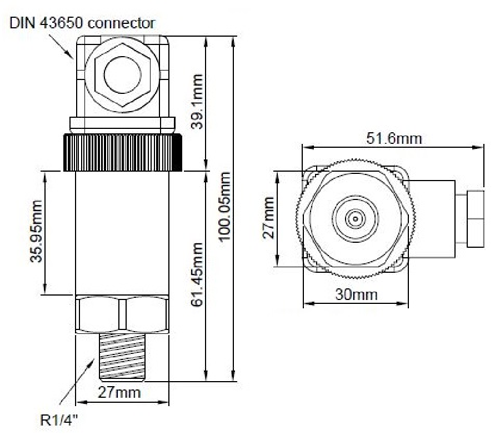

Electrical connection : DIN43650: P041 ; M12: P041 / P042
Process connection : R1/4" or R1/2" outside thread
Protection degree : DIN 43650: IP 65 ; M12 connector: IP 67
Electrical protection : over-voltage ; polarity ; short circuit
Certification : CE
Seal O-ring : VITON
Weight : GP 41: 150g / GP42 131g

Our pressure transmitter solve a number of the problems traditionally associated with water level measurement through non-contact technology which removes the installation, corrosion & fouling issues of submerged sensors

Applications:
1. National defense scientific research.
2. Petroleum survey and investigation
3. Military
4. Nuclear power generation and chemical
5. Scientific research and laboratory calibration
6. High - end equipment accessories
7. Airspace and aerospace
8. Support for engineering projects
9. Automatic detection systems
10. Saving water to irrigate
