Pressure Transmitters

Specifications:
1.Measurement Ranges: Sealed Gauge, Zero at atmospheric pressure. 0~100bar
2.Over-pressure : 4 x Full Scale at 2 ….. 200 bar
3.Output: 4 -20 mAor 20 –4 mA; Upscale < 25 mA
4.Loop Power: 12 -32 VdcMax.. Reverse polarity protected,
5.Accuracy: < ±0.25 % of Full Scale (Range Turndown 1:5 )
6.Stability (1 year) < 0.3% of Full Scale
7.Switch Action High, Low or Windowoperations
8.Switch Capacity: Vsw= 40 VdcMax, Isw= 20 mAMax
9.Load Capability: 50 x (loop power -10) ohms
10.Temperature Coefficient: ±0.05 % of FS / ℃typ; ( 0 ~ 50 Deg. C)
11.Response Time (0 to 90%): < 500 ms
12.Wetted & Housing Material: SUS 316, FPM (VITON), Ceramic AL2O3 99.6%
13.Permissible Temp. : Medium: -40 .125℃; Amb.Temp: -20 ..85℃
14.Compensated Temp. Range: -20 …+85 ℃
( Vloop= 24 Vdc, Tamb= 23 ±2℃, Rload= 250 ohms)

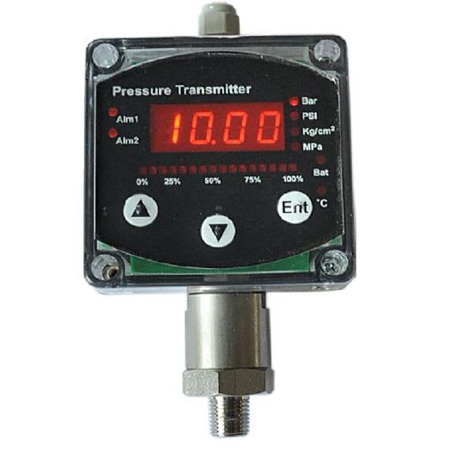

DP500 is a digital , high quality, 2-wire pressure transmitter that converters the relative pressure in liquid, gases or steam input into a proportional, linear, 4~20mA output current in a variety application such as process control, automation system, refrigeration, hydraulics and energy management. The ceramic measuring cell and O-ring sealing offer excellent chemical, corrosive resistance for a variety of measuring media.

Pressure Transmitter consists of pressure transmitters, pressure transducers, pressure sensors, digital indicators and transmitters, hazardous area pressure transmitters, submersible pressure transmitters and sanitary pressure transmitters. Designed for the mobile hydraulics, oil and gas, sanitary, pharmaceutical, water and wastewater and HVAC industries, these electronic pressure products are designed for long term, reliable performance in difficult industrial environments. Most models feature stainless steel construction, moisture and vibration protected circuitry and all are calibrated and tested prior to shipment.
